Accessories

Download datasheet for all available antennas

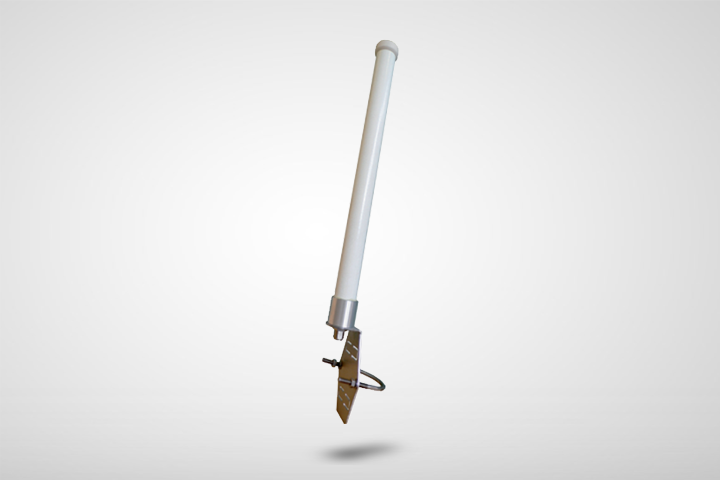

FGO High Gain

Omni High Gain

This FGO high gain omni directional antenna covers 800/900/1800/1900/2100/2600 MHz bands. It is ideal for fringe network areas and is supplied with mount bracket with a 5 cable.

Spec Sheet

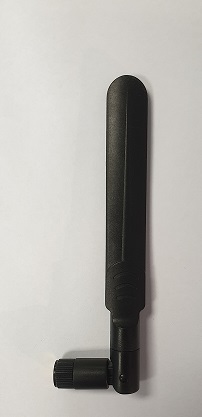

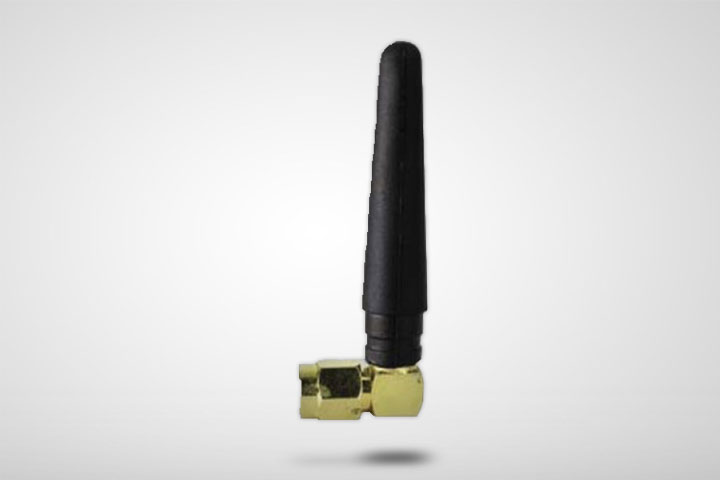

AGM015D

Dual band GSM antenna

AGM015 is a dual band (900/1800 MHz) GSM antenna. It has a 2dBi gain and comes with a right angle SMA male connector.

http://www.antennastore.co.nz/downloads/glyn/GSM_3G_&_GPS_Antennas_v14.pdf

AGM023P

Penta Band GSM / 3G antenna

AGM023P is a penta band (850/900/1800/1900/2100MHz) GSM and 3G antenna with a 2dBi gain and IP67 rated waterproof housing. AGM023P with cable lengths of 30 cm and SMA male connector are available in stock.

Various options are available for connectors (SMA, MMCX, MCX, others) and RG58 cable length (2m, 5m, others).

http://www.antennastore.co.nz/downloads/glyn/GSM_3G_&_GPS_Antennas_v14.pdf

AGM024P

Penta Band GSM / 3G antenna

AGM024P is a penta band (850/900/1800/1900/2100MHz) GSM and 3G antenna with a 5dBi gain and IP67 rated waterproof housing. AGM024P with cable lengths of 2 metre and 5 metres and with SMA male connector are available in stock.

Various options are available for connectors (SMA, MMCX, MCX, others) and RG174 cable length (3m, 5m, others).

http://www.antennastore.co.nz/downloads/glyn/GSM_3G_&_GPS_Antennas_v14.pdf

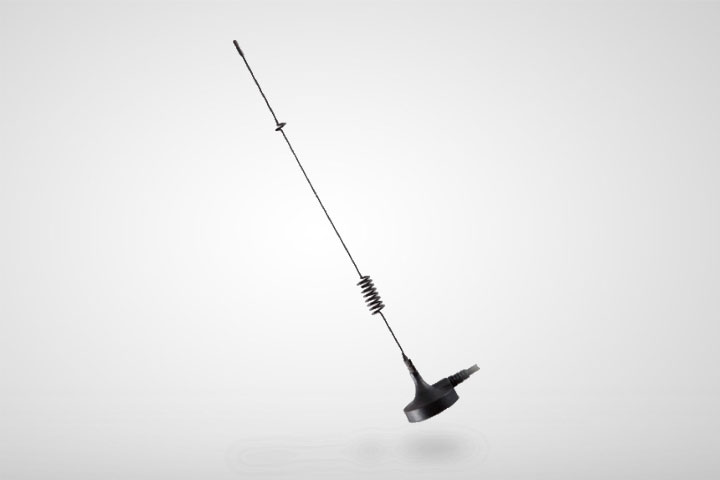

PentaMag

Pentaband magnetic antenna

The PentaMag is a multi-band magnetic antenna covering the cellular, GSM and 3G frequency bands. The exact frequency support is 824-960 and 1710-2170 MHz.

Offering a gain of 2 dBi, the PentaMag is designed for M2M (Machine to Machine), Telemetry and Telematics applications requiring wireless connectivity to multiple cellular-based frequencies including GPRS and 3G networks. The antenna is available in fixed cable and connector configurations.

http://www.antennastore.co.nz/downloads/glyn/GSM_3G_&_GPS_Antennas_v14.pdf

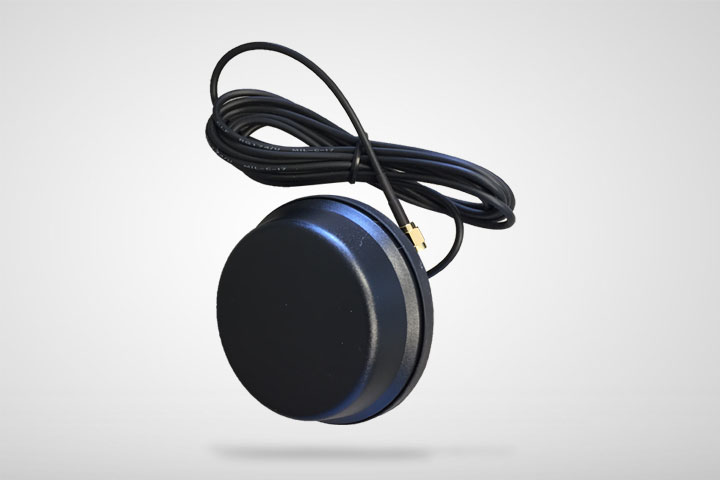

GSM-06-SMA

GSM-06-SMA (850/900/1800/1900/2100 MHz)  antenna

The GSM-06-SMA is a tough and durable 3G and GSM antenna with 2-3 dBi gain. The antenna is a screw-mount antenna requiring a 20mm hole. The cable exit is on the underside of the antenna and once mounted is totally enclosed and secure. The antenna is secured in place by a nut that is tightened from underneath. The GSM-06-SMA is ideal for metering, telemetry and telematics applications where a discrete antenna is required, but performance cannot be compromised.

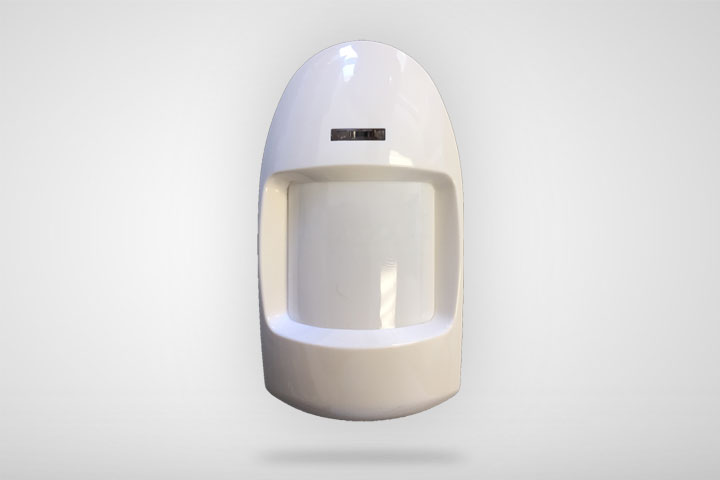

EL-55

Orion Motion Dectector

46"x 46" / 14m x 14m range

Superior FRI,EMI,ESD and lightning protection

Thermal optic stabilization cavity

Operating Voltage 9 - 16VDC

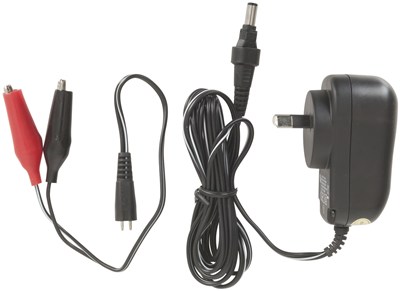

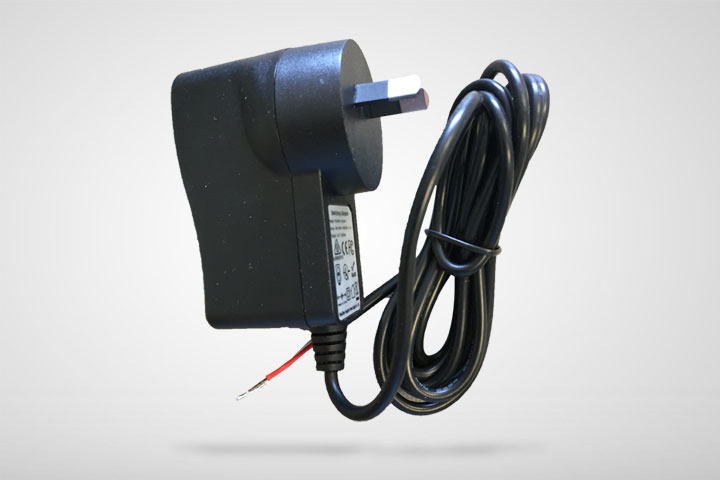

MPP-102

Power Adapter

Input : 230-240 VAC~50hz

Output: 12vdc @1A

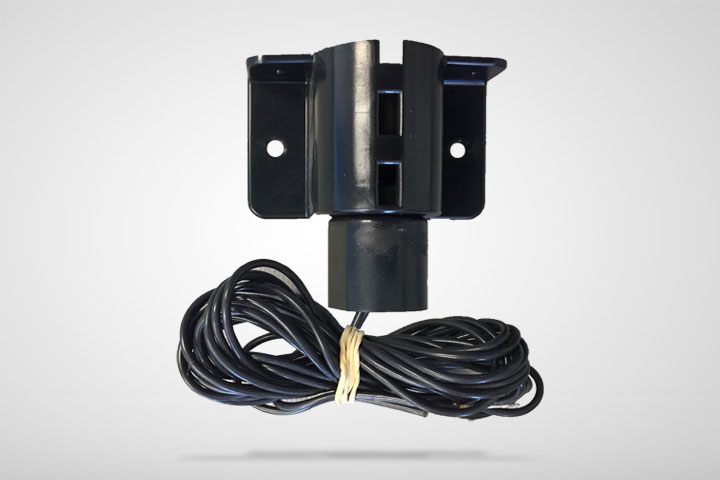

EZYFloat/

Vertical

EZY Float Switch - Vertical Mount

This is a rugged. compact, slosh protected fluid sensor switch.  Built for harsh conditions it is compatibable with seawater and variety of fuels, gasoline, hydraulic and lube oils, and provides stable level detection in contaminated, turbulents liquids.

Vertical mounting, factory set to N/O but can be changed to N/C by reversing the float on the shaft.

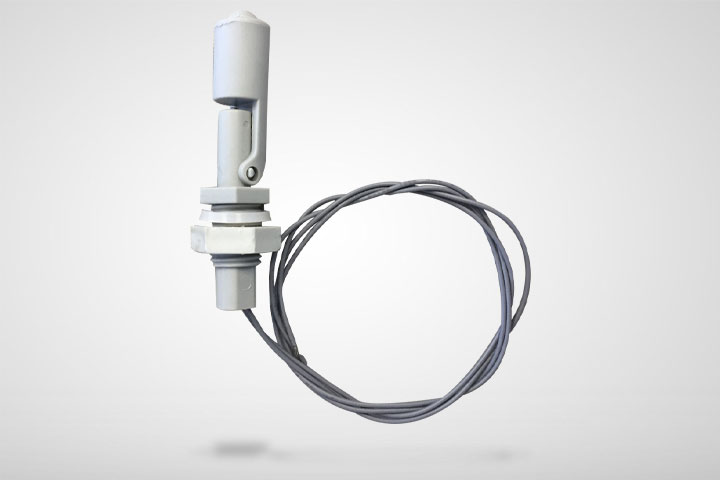

EZYFloat/

Horizontal


EZY Float Switch - Horrizontal Mount

This Ideal for use in conjunction with solenaoid valves, water pumps etc this float switch can be made NO or NC(Normallly Open or Normally Closed) by the orientation of the float.  Horizonatally mounted so the float falls, when the fluid level rises it will switch ON at maximum float height.  Mounting the switch so the float rises upwrds when the fluid level rises above switch height it will switch OFF.  Horizontal mounting, with the the float down, will switch OFF at a high fluid level.
